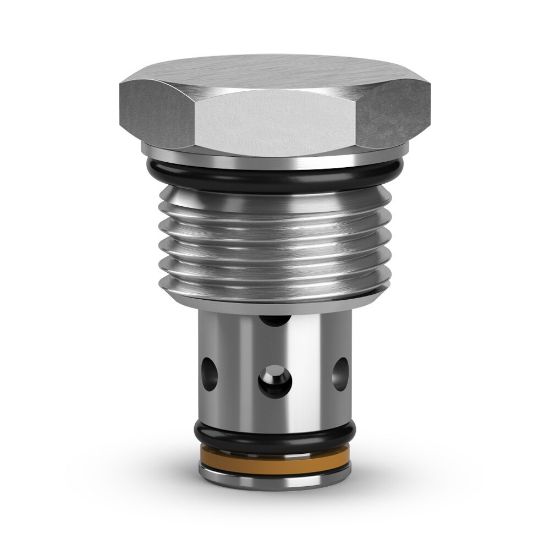

D02B2-0.0N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 308 days
Partner Available:	475 in stock

SKU D02B2-0.0N

$74.54/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	0 PSI, 0 BAR	Maximum Flow Rate	21 GAL/Min, 80 L/MIN
Minimum Operating Temperature	-34 °C	Flow Rate	12
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to 250 °F
Weight	0.11 lb	Maximum Operating Pressure	420 bar
Body Material	n/a	Actuation Type	Pressure Sensing
Filter Efficiency Rating	SAE Class 4	Installation Torque	30 lb-ft
Division	Mobile Hydraulic Systems Division Europe	Maximum Flow Rate	21 Gal/min
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Seal Material	Nitrile	Valve Material	Steel
Leak Rate	< 3	Maximum Operating Temperature	250 °F
Maximum Inlet Pressure Rating	6000 psi	Function	Standard Check
Flow Direction	2-1 Checked	Cavity Size	C08-2
Cracking Pressure	0 psi
