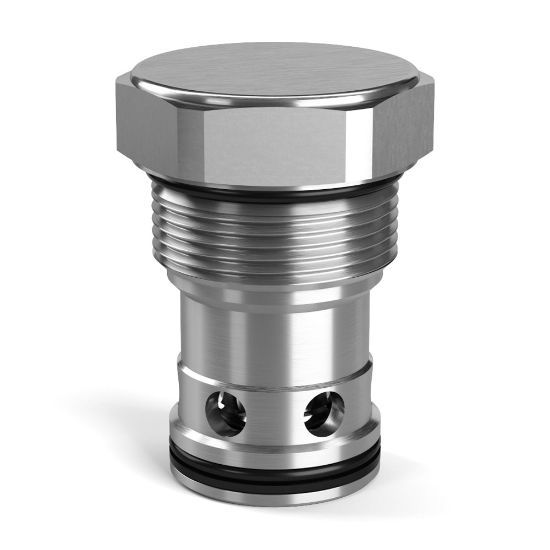

CVH201P20 - Standard Check Valves

Name: CVH201P20 - Standard Check Valves
SKU: CVH201P20
Price: 137.46 USD
Availability: InStock

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:

5 in stock

Springfield, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CVH201P20

$137.46/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Flow Rate	80 GAL/MIN, 303 L/MIN	Cracking Pressure	20 PSI, 1.4 BAR
Maximum Operating Temperature	250 °F	Leak Rate	5
Maximum Inlet Pressure Rating	350 bar	Seal Material	Nitrile
Valve Material	Hardened Steel	Flow Direction	2-1 Checked
Function	Standard Check	Cracking Pressure	20 psi
Minimum Operating Temperature	-30 °F	Cavity Size	C20-2
Flow Rate	n/a	Operating Temperature	-34 to 121 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Body Material	n/a
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	350 bar	Weight	0.6 lb
Division	Hydraulic Systems Division	Installation Torque	98 lb-ft
For Fluid Type	Mineral-based Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	80 Gal/min
