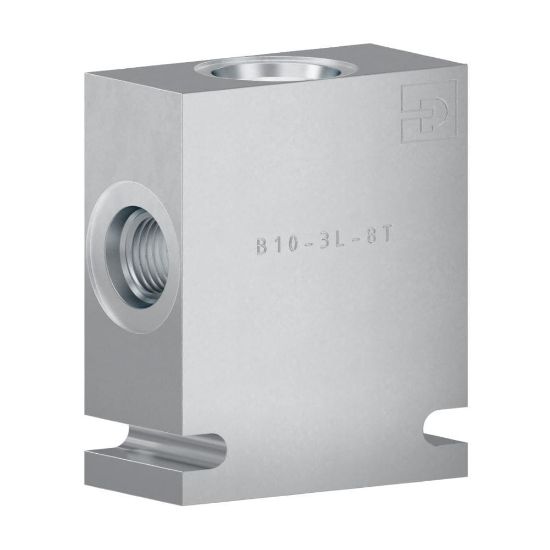

B10-3L-8T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	1 Limited Stock

SKU B10-3L-8T

$248.04/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection Type	SAE	Cavity Size	C10-3L
Connection Size	-8	Number of Positions	3 way
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Operating Pressure	5000 psi	Body Material	Steel
Weight	0.77 kg	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Cavity Size	C08-3L	Number of Positions	3-Way
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Connection Size	-8	Division	Hydraulic Systems Division
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Connection Type	SAE
For Fluid Type	Mineral-based Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
