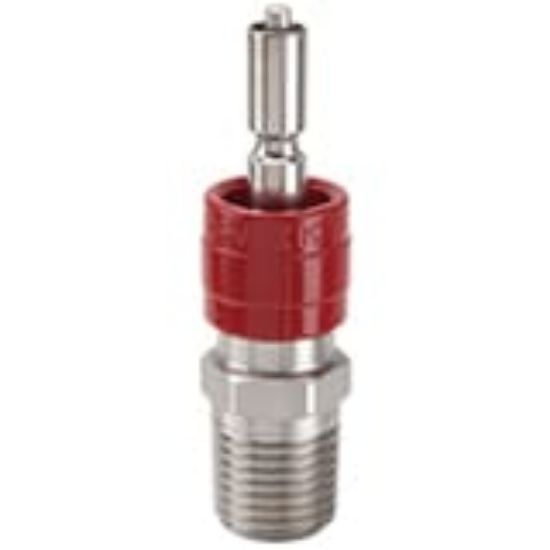

Parker 4M-Q4VY-SS Poppet 316 Stainless Steel Male NPT Stainless Steel, Instrumentation Quick Coupling - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2 Limited Stock

SKU 4M-Q4VY-SS

$111.95/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Connection Type	Male NPT	Tube Size (inch)	na
Maximum Operating Pressure	3000	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Hose Inside Diameter	na
Product Type	Push-to-Connect	Minimum Operating Temperature	-15 °F
Application	Instrumentation	Vacuum Pressure Rating	0.05 mm-Hg
Maximum Operating Pressure	3000 psi	Body Material	316 Stainless steel
