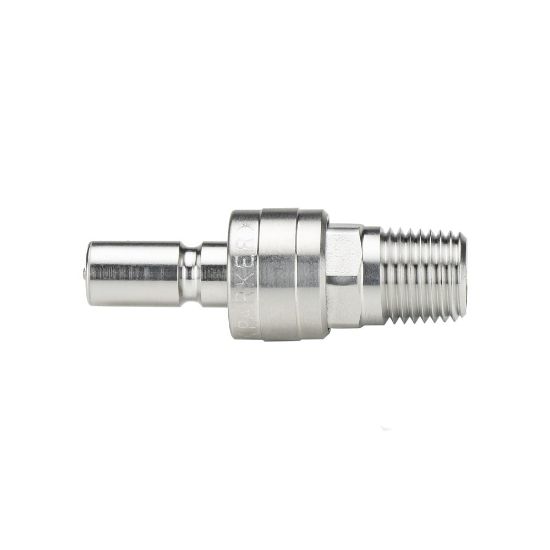

2M-Q4P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 2M-Q4P-SS

$102.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/8 - 27
Connection Type	Male NPT	Tube Size (inch)	na
Maximum Operating Pressure	3000	Product Type	Push-to-Connect
Hose Inside Diameter	na	Minimum Operating Temperature	-15 °F
Valve Type	Unvalved	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Seal Material	na
Vacuum Pressure Rating	0.05 mm-Hg	Body Material	316 Stainless steel
Maximum Operating Pressure	3000 psi	Application	Instrumentation
