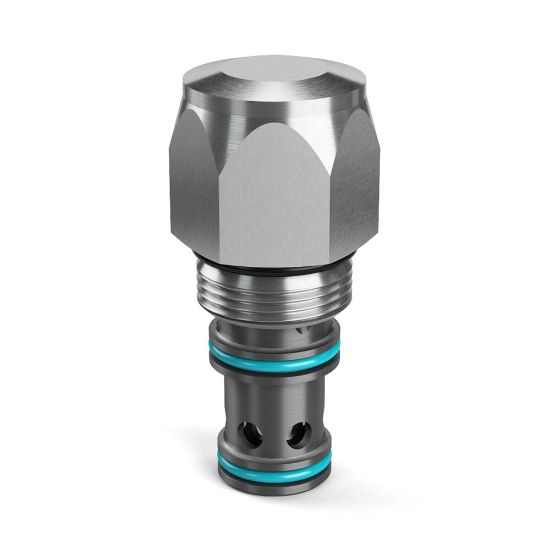

16SLC3-A-150 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 16SLC3-A-150

$103.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Open	Switching Pressure	150 PSI, 10.3 BAR
Flow Direction	Side to Nose (2-1)	Dampening Orifice Included	No
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Division	Hydraulic Systems Division
Installation Torque	54 Nm	Body Material	n/a
Pilot Location	External	Weight	0.33 kg
Operation Type	Pilot Operated	Function	Logic Valve
Seal Material	Polyurethane EPS	Maximum Inlet Pressure Rating	3500 psi
Maximum Flow Rate	189 L/min	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Steel	Maximum Operating Temperature	107 °C
Leak Rate	82	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-35 °F	Cavity Size	C16-3S
Switching Pressure	10.3 bar	Flow Direction	Side to Nose (2-1)
Maximum Operating Pressure	3500 psi	Configuration	Normally Open (NO)
Operating Temperature	-35 to 225 °F	Vented	Internal
Actuation Type	Pilot to Close	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Dampening Orifice Included	No
Flow Rate	n/a
