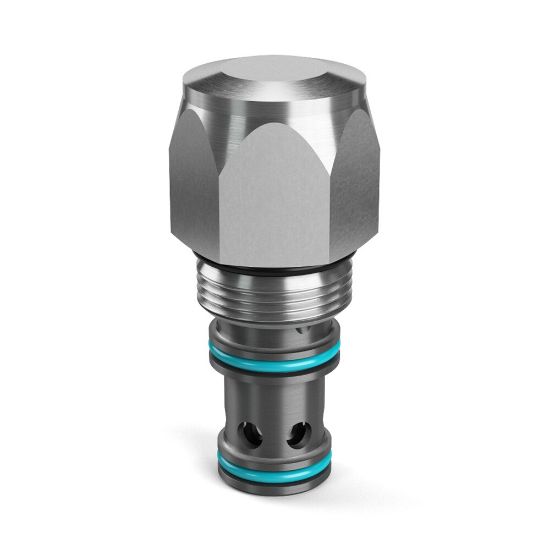

16SLC2-B-100 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 16SLC2-B-100

$114.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	100 PSI, 6.9 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Division	Hydraulic Systems Division
Operation Type	Pilot Operated	Vented	External
Body Material	n/a	Installation Torque	40 lb-ft
Weight	0.78 lb	Pilot Location	Internal
Maximum Operating Pressure	240 bar	Maximum Inlet Pressure Rating	240 bar
Valve Material	Steel	Maximum Operating Temperature	225 °F
Seal Material	Polyurethane EPS	For Fluid Type	Synthetic Hydraulic Fluids
Maximum Flow Rate	50 Gal/min	Division	Hydraulic Cartridge Systems Division
Leak Rate	82	Cavity Size	C16-3S
Minimum Operating Temperature	-35 °F	Flow Direction	Nose to Side (1-2)
Function	Logic Valve	Actuation Type	Vent to Open
Flow Rate	n/a	Operating Temperature	-37 to 107 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13
Configuration	Normally Closed (NC)	Dampening Orifice Included	Yes
Switching Pressure	100 psi
