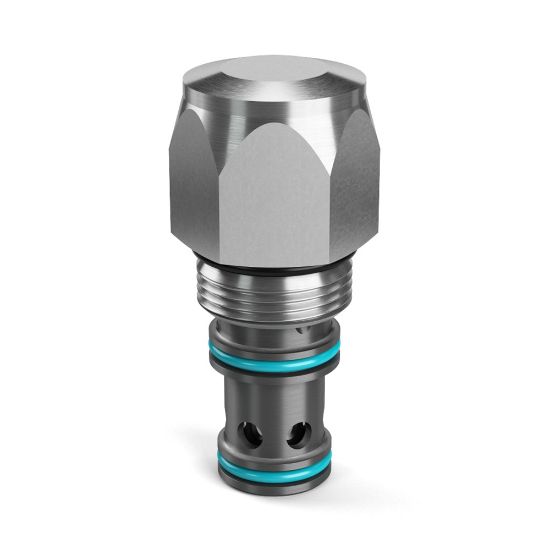

16SLC2-A-50 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 16SLC2-A-50

$115.49/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	50 PSI, 3.5 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Maximum Inlet Pressure Rating	3500 psi
Function	Logic Valve	Leak Rate	82
Seal Material	Polyurethane EPS	Maximum Flow Rate	189 L/min
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	225 °F
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel
Minimum Operating Temperature	-35 °F	Switching Pressure	3.5 bar
Cavity Size	C16-3S	Dampening Orifice Included	No
Flow Direction	Nose to Side (1-2)	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Closed (NC)
Maximum Operating Pressure	3500 psi	Operating Temperature	-37 to 107 °C
Actuation Type	Pilot to Close	Vented	Internal
Flow Rate	n/a	Weight	0.33 kg
Operation Type	Pilot Operated	Pilot Location	External
Body Material	n/a	Division	Hydraulic Systems Division
Installation Torque	40 lb-ft
