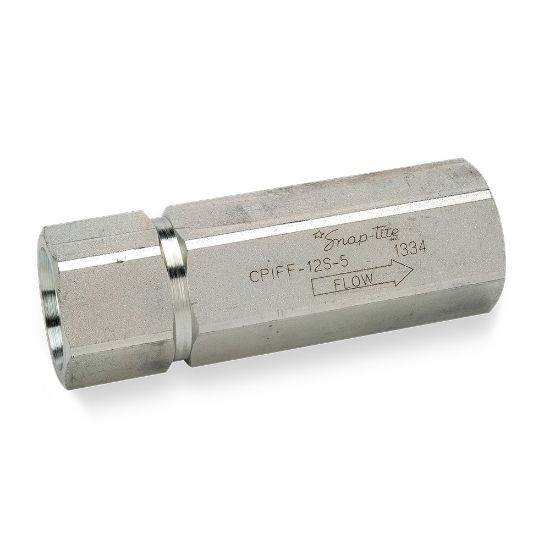

CPIFF-16S-5A - Soft Seat, Hydraulic In Line Check Valves - CPIFF Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU CPIFF-16S-5A

$145.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure (psi)	5	Inlet Port Connection Type	Female SAE Straight Thread
Outlet Port Connection Type	Female SAE Straight Thread	Body Size (inch)	1
Inlet Port Size (inch)	1 5/16 - 12 UN	Outlet Port Size (inch)	1 5/16 - 12 UN
Minimum Operating Temperature	-40 °F	Actuation Type	Mechanical
Seat Type	Soft Seat	Maximum Operating Pressure	5000 psi
Body Material	Steel	Maximum Flow Rate	n/a
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
