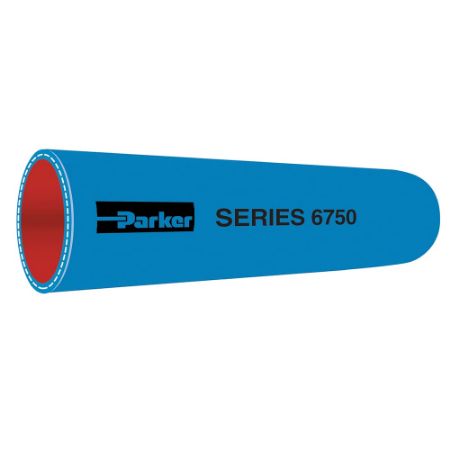

Silicone Standard Wall High Temperature Coolant Hose, Series 6750

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 6750 Silicone Standard Wall High Temperature Coolant/Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The hose is flexible for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in convenient 3-ft standard lengths.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Red silicone for superior heat resistance to 350°F.

• Reinforcement: Multiple textile plies for strength and kink resistance.

• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:

- media

• Coolant

• Hot water

- usage

• Coolant transfer in heater and coolant circuits

• Agricultural equipment

• Buses

• Construction equipment

• Off-road equipment

• Trucks

Industry Standards:

• SAE J20R1 Class A

Safety/Technical:

• Design Factor: 3:1

• Nonconductive

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Minimum Burst Pressure (psi)	Maximum Operating Temperature	Hose Inner Tube Material	Media	Cover Structure	Cover Material	Minimum Bend Radius	Minimum Operating Temperature	Minimum Burst Pressure	Application	Hose Reinforcement Material	Specifications Met	Quantity per Box	Outside Diameter	Package Type	Weight	Inside Diameter	Maximum Operating Pressure	Cover Color	Division
6750-1000003	Backordered	3 in stock	$107.69/each	EA	1	299	176 °C	Brick Red	Coolants	Glossy	Silicone	n/a	-65 °F	20.6 bar	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	1.350 inch	Carton	1.08 lb/ft	1 inch	7 bar	Blue	Hose Products Division
6750-1125003	Backordered	7 in stock	$122.78/each	EA	1-1/8	299	176 °C	Brick Red	Coolants	Glossy	Silicone	n/a	-54 °C	299 psi	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	37.3 mm	Carton	1.75 kg/m	1-1/8 inch	7 bar	Blue	Hose Products Division
6750-1250003	Backordered	60 in stock	$125.83/each	EA	1-1/4	276	350 °F	Silicone	Coolants	Glossy	Silicone	n/a	-54 °C	276 psi	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	1.600 inch	Carton	1.90 kg/m	31.8 mm	92 psi	Blue	Hose Products Division
6750-1375003	Backordered	1 Limited Stock	$139.53/each	EA	1-3/8	276	176 °C	Brick Red	Water	Glossy	Silicone	n/a	-65 °F	276 psi	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	43.7 mm	Carton	0.63 kg	1-3/8 inch	92 psi	Blue	Hose Products Division
6750-1500003	Backordered	8 in stock	$146.42/each	EA	1-1/2	249	350 °F	Silicone	Water	Glossy	Silicone	n/a	-54 °C	17.2 bar	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	1.850 inch	Carton	1.49 lb/ft	38.1 mm	6 bar	Blue	Hose Products Division
6750-1625003	Backordered	2 Limited Stock	$160.72/each	EA	1-5/8	249	350 °F	Silicone	Water	Glossy	Silicone	n/a	-65 °F	17.2 bar	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	1.970 inch	Carton	1.59 lb/ft	41.3 mm	6 bar	Blue	Hose Products Division
6750-1750003	Backordered	Backordered	$119.69/each	EA	1-3/4	225	176 °C	Brick Red	Water	Glossy	Silicone	n/a	-54 °C	15.5 bar	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	2.100 inch	Carton	2.52 kg/m	1-3/4 inch	75 psi	Blue	Hose Products Division
6750-1875003	Backordered	Backordered	$132.26/each	EA	1-7/8	200	176 °C	Brick Red	Water	Glossy	Silicone	n/a	-65 °F	13.8 bar	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	56.4 mm	Carton	1.80 lb	47.6 mm	5 bar	Blue	Hose Products Division
6750-2000003	Backordered	3 in stock	$172.64/each	EA	2	200	350 °F	Brick Red	Water	Glossy	Silicone	n/a	-54 °C	200 psi	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	59.7 mm	Carton	2.84 kg/m	2 inch	67 psi	Blue	Hose Products Division
6750-2125003	Backordered	Backordered	$146.73/each	EA	2-1/8	175	176 °C	Brick Red	Coolants	Glossy	Silicone	n/a	-54 °C	175 psi	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	62.7 mm	Carton	0.92 kg	2-1/8 inch	4 bar	Blue	Hose Products Division
6750-2250003	Backordered	Backordered	$146.02/each	EA	2-1/4	175	350 °F	Silicone	Coolants	Glossy	Silicone	n/a	-54 °C	175 psi	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	2.600 inch	Carton	2.15 lb	2-1/4 inch	58 psi	Blue	Hose Products Division
6750-2375003	Backordered	Backordered	$159.55/each	EA	2-3/8	175	350 °F	Silicone	Water	Glossy	Silicone	n/a	-65 °F	12.1 bar	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	2.720 inch	Carton	2.30 lb/ft	60.3 mm	4 bar	Blue	Hose Products Division
6750-2500003	Backordered	4 in stock	$206.67/each	EA	2-1/2	149	350 °F	Brick Red	Coolants	Glossy	Silicone	n/a	-65 °F	149 psi	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	72.4 mm	Carton	3.57 kg/m	63.5 mm	50 psi	Blue	Hose Products Division
6750-2625003	Backordered	Backordered	$175.26/each	EA	2-5/8	125	350 °F	Silicone	Water	Glossy	Silicone	n/a	-65 °F	125 psi	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	75.4 mm	Carton	1.14 kg	66.7 mm	6 bar	Blue	Hose Products Division
6750-2750003	Backordered	45 in stock	$228.09/each	EA	2-3/4	125	176 °C	Brick Red	Coolants	Glossy	Silicone	n/a	-65 °F	125 psi	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	3.100 inch	Carton	1.20 kg	69.9 mm	3 bar	Blue	Hose Products Division
6750-2875003	Backordered	Backordered	$183.37/each	EA	2-7/8	87	176 °C	Brick Red	Water	Glossy	Silicone	n/a	-54 °C	87 psi	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	3.220 inch	Carton	1.27 kg	73 mm	2 bar	Blue	Hose Products Division
6750-3000003	Backordered	2 Limited Stock	$251.59/each	EA	3	87	176 °C	Brick Red	Water	Glossy	Silicone	n/a	-54 °C	6 bar	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	85.1 mm	Carton	4.46 kg/m	3 inch	2 bar	Blue	Hose Products Division
6750-3250003	Backordered	1 Limited Stock	$276.80/each	EA	3-1/4	75	176 °C	Brick Red	Coolants	Glossy	Silicone	n/a	-54 °C	5.2 bar	Silicone Coolant	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	3.600 inch	Carton	1.43 kg	82.6 mm	2 bar	Blue	Hose Products Division
6750-3500003	Backordered	Backordered	$213.93/each	EA	3-1/2	75	176 °C	Brick Red	Coolants	Glossy	Silicone	n/a	-65 °F	5.2 bar	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	3.850 inch	Carton	3.32 lb/ft	88.9 mm	2 bar	Blue	Hose Products Division
6750-4000003	Backordered	3 in stock	$322.99/each	EA	4	49	350 °F	Brick Red	Coolants	Glossy	Silicone	n/a	-65 °F	49 psi	Engine	Multiple Plies of High Temperature Textile	SAE J20R1, Class A	1 x 3-ft Lengths	4.350 inch	Carton	5.50 kg/m	101.6 mm	1 bar	Blue	Hose Products Division
