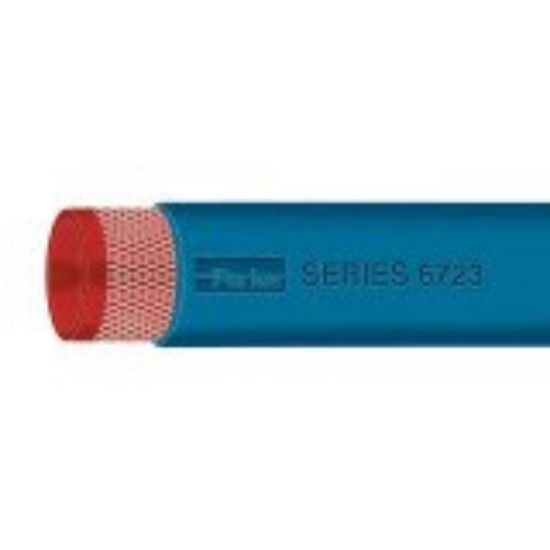

6723-0375250 - Silicone Heavy Wall High Temperature Heater Hose, Series 6723

Silicone Heavy Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 83 psi, Series 6723

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU 6723-0375250

$7.01/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Standard Pack Qty (ft)	250	Minimum Burst Pressure (psi)	250
Cover Material	Silicone	Cover Structure	Glossy
Minimum Bend Radius	0.6 inch	Minimum Operating Temperature	-54 °C
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Specifications Met	SAE J20R3
Application	Silicone Coolant	Minimum Burst Pressure	17.2 bar
Package Type	Reel	Outside Diameter	0.770 inch
Inside Diameter	9.5 mm	Weight	0.15 lb/ft
Maximum Operating Pressure	83 psi	Cover Color	Blue
Division	Hose Products Division	Maximum Operating Temperature	350 °F
Hose Inner Tube Material	Brick Red	Media	Coolants

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
