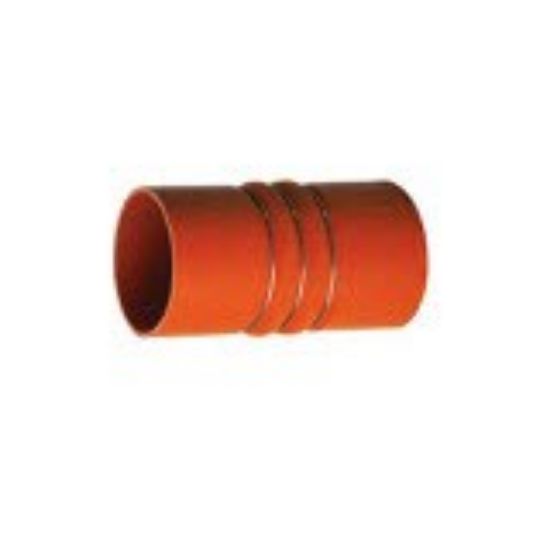

6823-40006000 - Silicone Extreme High Temperature Charge Air Cooler Hose, Series 6823

Silicone Extreme High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the hot exhaust air from the charging system of heavy duty engine applications to 500°F and 25 psi, Series 6823

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	34 in stock

SKU 6823-40006000

$92.94/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Standard Package Quantity	6 x 6-in lg
Hose I.D. (inch)	4	Minimum Burst Pressure (psi)	80
Hose Inner Tube Material	Brick Red	Media	Air (Hot Air)
Minimum Bend Radius	n/a	Cover Material	Silicone
Minimum Operating Temperature	-65	Application	Engine
Specifications Met	SAE J20R5	Minimum Burst Pressure	80
Hose Reinforcement Material	4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings)	Outside Diameter	4.220
Inside Diameter	4	Weight	0.55
Maximum Operating Pressure	80	Maximum Operating Temperature	500
Division	Hose Products Division
