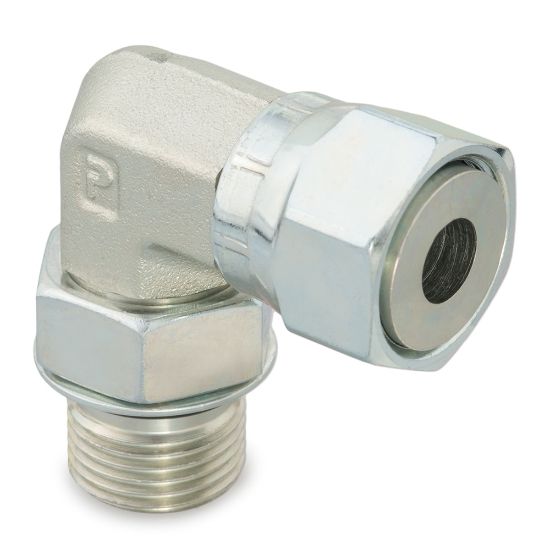

10 AOEL6-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	Backordered

SKU 10 AOEL6-S FKM

$42.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	6000 psi
Connection 3 Type	na	Connection 3 Thread Size	na
Connection 2 Type	Male SAE-ORB	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J1453	O-Ring Material	90 Durometer Fluorocarbon
Dimensional Weight	0.1086353417266187 lb	Connection 1 Type	Female O-Ring Face Seal Swivel
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Tube Outside Diameter	na
Body Material	Steel	Shape	90° Elbow
Connection 4 Type	na	Connection Type	O-ring Face Seal
Division	Tube Fittings Division	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
