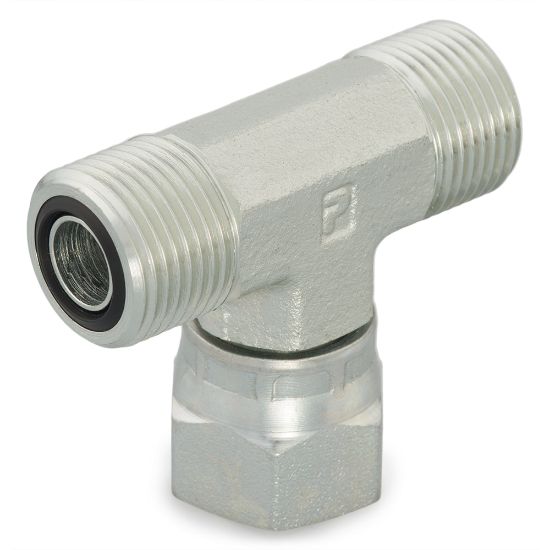

12 S6LO-SS CNG - Seal-Lok for CNG O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok for CNG O-Ring Face Seal (ORFS) tube fittings and adapters achieve proven, leak-free connections for on-vehicle fuel systems and infrastructure-related natural gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 12 S6LO-SS CNG

$442.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	Male O-Ring Face Seal
Division	Tube Fittings Division	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	18, 20 mm	Connection 3 Size	Female O-Ring Face Seal Swivel
Connection 4 Size	na	Connection 1 Size	Male O-Ring Face Seal
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	3/4 inch
Specifications Met	SAE J1453	O-Ring Material	85 Durometer Low Temp HNBR
Connection 4 Tube Outside Diameter	na	Shape	Tee
Body Material	Stainless Steel	Connection 1 Tube Outside Diameter	18, 20 mm
Connection Type	O-ring Face Seal
