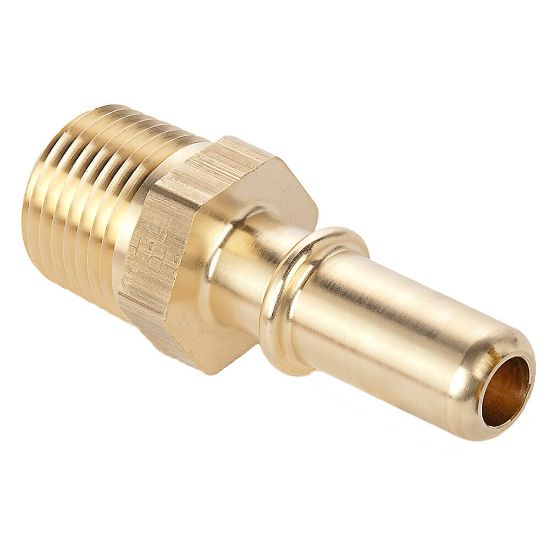

68ALS-12M-6 - SAE J2044 Push-to-Connect Fittings, Safe Lock

Parker's SAE J2044 push-to-connect design reduces hose assembly fabrication time and the exclusive locking mechanism minimizes leaks and installation failures.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	Backordered

SKU 68ALS-12M-6

$23.45/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	3/8"
Connection 2 Hose I.D. (inch)	n/a	Connection 1 Type	Male SAE J2044
Connection Size	12 mm	Connection 2 Type	NPTF
Shape	Straight	Product Style	SAE J2044 to Pipe
Minimum Operating Temperature	-40 °C	Specifications Met	SAE J2044
Application	Fuel supply, Vapor emission, cooling/heating	Maximum Operating Pressure	72 psi
Body Material	Brass	Seal Material	Fluorocarbon, Fluorosilicone
Division	Fluid System Connectors Division	Maximum Operating Temperature	115 °C
Media	Coolant, Fuel

Product resources

Literature and Reference Materials

Transportation Products Quick Reference Guide - Trans-QRG (PDF)
