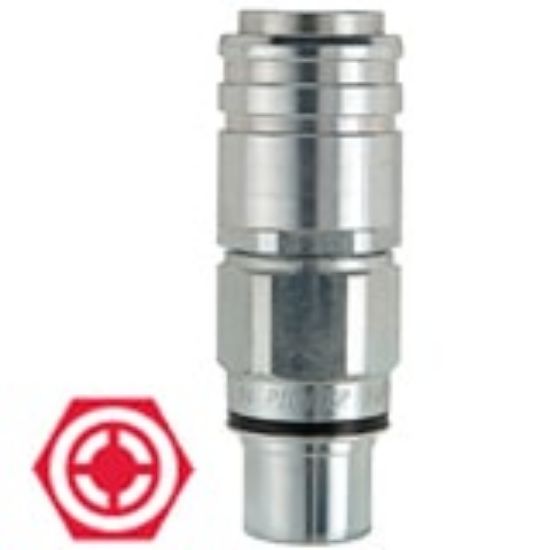

8450-16M - Rigid Mount, Pioneer Agricultural, Connect Under Pressure Quick Couplers (ISO 5675) - 8450 Series

Pioneer rigid mount, connect under pressure quick couplers are used across a spectrum of agricultural hydraulic applications where fluid lines require fast and easy connection while either or both the coupler and nipple are under pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 8450-16M

$162.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Style	Male
Media	Hydraulic	Body Size	1/2 inch
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Brand	Pioneer
Plating Type	Zinc with Clear Trivalent Chromate	Coupling Half	Coupler
Maximum Operating Pressure	3000 psi	Connection Thread Size	7/8"-14 ORB inch
Flow Rate	25 Gal/min	Sleeve Type	Push-pull Connect and Disconnect (Rigid Mount)
Specifications Met	ISO 5675	Division	Quick Coupling Division
Body Material	Steel
