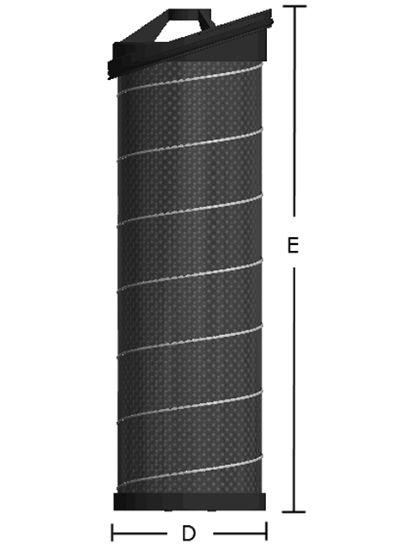

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

945900Q - Replacement Elements - Low Pressure Filter GLF Series

Name: 945900Q - Replacement Elements - Low Pressure Filter GLF Series
SKU: 945900Q
Price: 221.84 USD
Availability: InStock

The Parker GLF Series Low Pressure Return Line Filters combine high efficiency Microglass filtration with low cost installation in a new patented element design. Easily removed for maintenance, this filter offers both convenience and dependability.

Availability:

17 in stock

Olivette, MO	15
Wichita, KS	2

Partner Available:

54 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 945900Q

$221.84/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Housing Series	GLF3
Seal Material	Nitrile	Length	double
Filter Element	10Q Microglass	Product Type	Hydraulic Filter
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Cartridge	Seals	NBR: Nitrile
Media Type	Microglass	Collapse Pressure (bar)	10.3 bar
Efficiency βx(C) ≥ 1000	12 µ	Media	10 Micron Absolute
Collapse Pressure (psi)	150 psi	UOM	EA
Pkg Qty	1	Efficiency βx(C) ≥ 200	9 µ
Collapse Pressure (bar)	10.3 bar	E Dimension	19 in (482.6 mm)
Efficiency βx(C) ≥ 1000	12 µ	Glue Side Seam Adhesive	Epoxy
Parker Division	Hydraulic Filter	Collapse Pressure (psi)	150 psi
Series	ParFit	Media	10 Micron Absolute
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Inner Support Cylinder Material	Steel tin plated
Parker Group	Filtration	Efficiency βx(C) ≥ 200	9 µ
Seals	NBR: Nitrile	Media Type	Microglass
Top Endcap Material	Glass reinforced nylon	Bottom Endcap Material	Glass reinforced nylon
Glue Endcaps Adhesive	Epoxy	D Dimension	4.78 in (121.4 mm)
