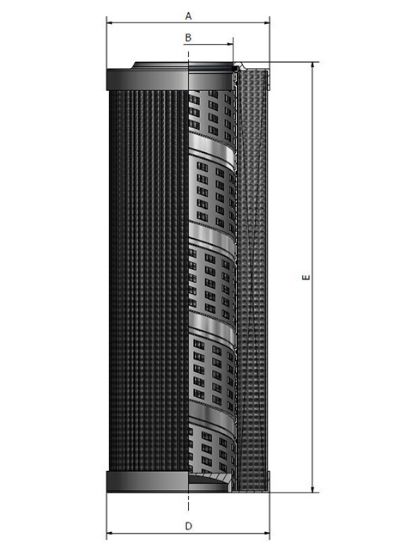

926835Q - Replacement Elements - CN Series

High efficiency genuine replacement elements for Parker 15/40/80CN Series medium pressure hydraulic filters.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	1 Limited Stock

SKU 926835Q

$77.46/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Micron Rating	10 µm	Length	Length 1
Filter Element Type	10Q Microglass	For Use With	40CN
Product Type	Hydraulic Oil Filter	Technology	Filtration
Operating Pressure	70	Application	• Compressor Lube Oil<br/>• Off-line Filter Loops<br/>• Machine Tools (Automotive Standard)<br/>• Hydrostatic Drive Charge Pumps<br/>• Mobile Equipment<br/>• Pilot Lines for Servo Controls<br/>• Oil Patch Drilling Equipment<br/>• Injectio
Operating Temperature	-40 to 100	Flow Rate	0 to 600 L/min
Product Series	Replacement Elements - CN Series	Brand	Parker
Division	Hydraulic & Industrial Process Filtration Division EMEA	Filter Type	Medium Pressure Inline Filter
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils.	Industry	• Industrial Manufacturing Equipment<br/>- Automotive<br/>- Food & Beverage<br/>- Rubber & Plastics<br/>- Metals<br/><br/>• Off-road Machinery<br/>- Agriculture<br/>- Construction<br/>- Forestry<br/>- Lawn & Turf<br/>- Mining<br/>- Materials Handling
Division	Hydraulic & Industrial Process Filtration Division EMEA	Collapse Pressure (psi)	150 psi
Efficiency βx(C) ≥ 200	9 µ	Media	10 Micron Absolute
Efficiency βx(C) ≥ 1000	12 µ	UOM	EA
Collapse Pressure (bar)	10.3 bar	Pkg Qty	1
Seals	FKM: Fluorocarbon	Media Type	Microglass
Parker Group	Filtration	Parker Division	Hydraulic Filter
Series	ParFit	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 200	9 µ	Efficiency βx(C) ≥ 1000	12 µ
Glue Side Seam Adhesive	Epoxy	Glue Endcaps Adhesive	Epoxy
Media	10 Micron Absolute	Media Type	Microglass
B Dimension	1.701 in (43.2 mm)	Top Endcap Material	Glass reinforced nylon
Bottom Endcap Material	Glass reinforced nylon	Media Composition Detail	Multilayer fiberglass with epoxy coated wire mesh on both sides
Inner Support Cylinder Material	Steel zinc plated	D Dimension	0.319 in (8.1 mm)
E Dimension	4.63 in (117.6 mm)	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Competitor	DENNIS EAGLE
A Dimension	0.319 in (8.1 mm)
