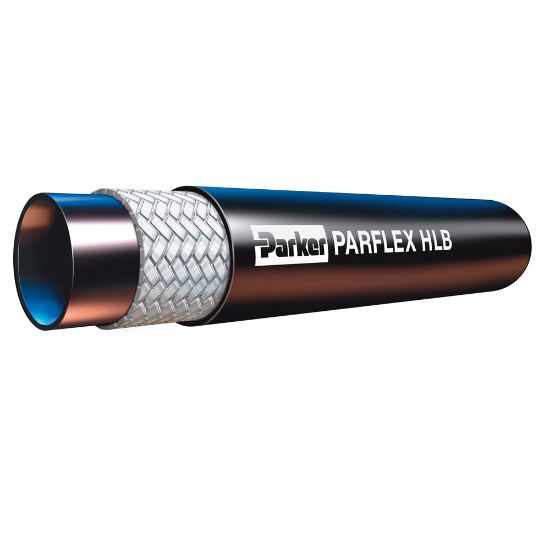

HLB03-250 - Remote Grease Hose 3000 psi - HLB

Name: HLB03-250 - Remote Grease Hose 3000 psi - HLB
SKU: HLB03-250
Availability: InStock

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.

Manufacturer: Parker

Availability:

19 in stock

Kansas City, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU HLB03-250

POR

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Reinforcement Material	Fiber
Minimum Bend Radius	3/4 inch	Minimum Operating Temperature	-40 °C
Cover Material	Polyurethane	Application	Construction Equipment
Specifications Met	MSHA	Inside Diameter	3/16 inch
Maximum Operating Pressure	207 bar	Outside Diameter	10.4 mm
Weight	0.08 kg/m	Size	-3
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Copolyester
Compatible Fitting	BU Series (field attachable fitting limited to 120°F)	Division	Parflex Division
Media	Lubricants (Oils)	Design Factor	4:1
