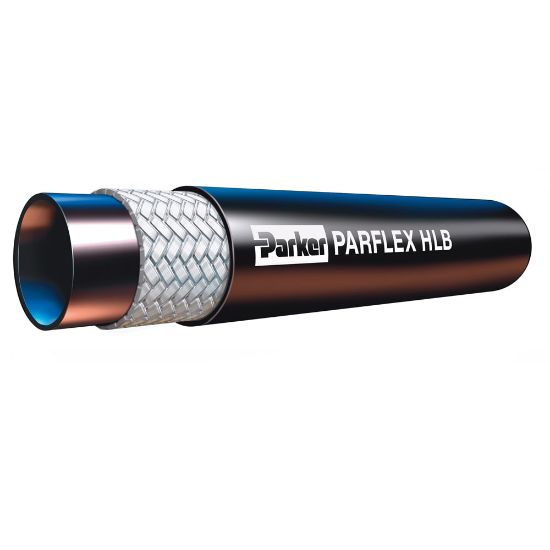

HLB03 - Remote Grease Hose 3000 psi - HLB

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU HLB03

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Operating Temperature	100 °C	Compatible Fitting	CY Series
Division	Parflex Division	Size	-3
Hose Inner Tube Material	Copolyester	Design Factor	4:1
Media	Petroleum Hydraulic Fluids	Cover Material	Polyurethane
Minimum Bend Radius	19 mm	Minimum Operating Temperature	-40 °C
Application	Transportation	Specifications Met	MSHA
Hose Reinforcement Material	Fiber	Outside Diameter	0.410 inch
Weight	0.08 kg/m	Maximum Operating Pressure	3000 psi
Inside Diameter	5 mm
