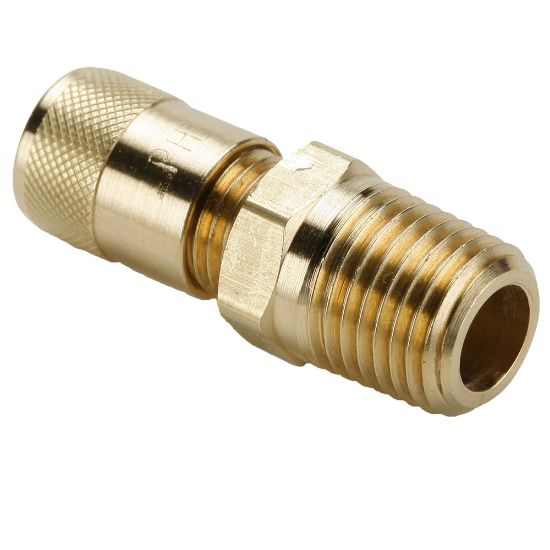

AVU1-2 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1 Limited Stock

SKU AVU1-2

$10.64/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Male Pipe	Connection 1 Style	SAE Male Flare
Shape	Male Connector	Style	Flare to Male Pipe
Connection 2 Solder O.D. (inch)	1/4	Division	Fluid System Connectors Division
Media	Fluorocarbon Refrigerants	Maximum Operating Pressure	34 bar
Maximum Operating Temperature	220 °F	Minimum Operating Temperature	-28 °C
Body Material	Brass	Specifications Met	Valve Core Meets ARI Standard 720
Dimensional Weight	0.5518884892086331 lb	Nut Material	Brass
