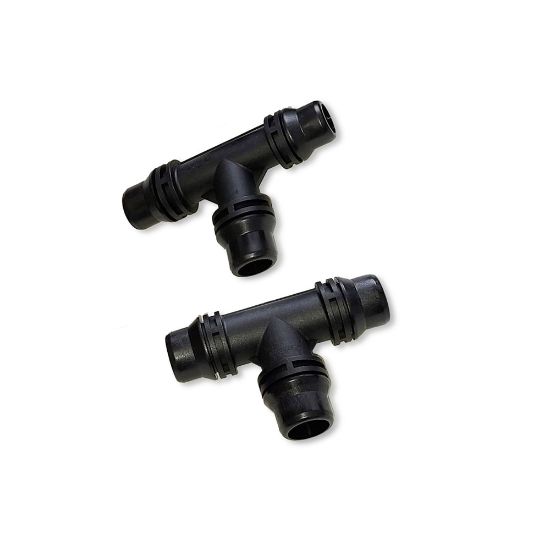

MVDA16T - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU MVDA16T

$8.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Length (inch)	4.25"	Connection 1 Hose Inside Diameter	0.629" (I.D.)
Product Style	MVDA	Maximum Operating Temperature	212
Seal Material	EPDM (O-Ring)	For Fluid Type	Coolants (Water Based)
Division	Parflex Division	Size	-18
Connection Type	Push-to-Connect	Fitting Type	Barb / Beaded Barb / Mini Barb
Length	4.25	Connection 1 Size	0.629 inch Hose I.D.
Connection Size	n/a	Product Type	Hose Fitting
Materials of Construction	High Performance Glass Filled Polyamide	Application	Fluid Transfer
Product Series	ECH	Configuration	Hose to VDA
Minimum Operating Temperature	-40	Product Style	VDA
Brand	Parker	Shape	Tee
Division	Parflex Division	Industry	Transportation
Maximum Operating Pressure	125	Vacuum Pressure Rating	n/a
