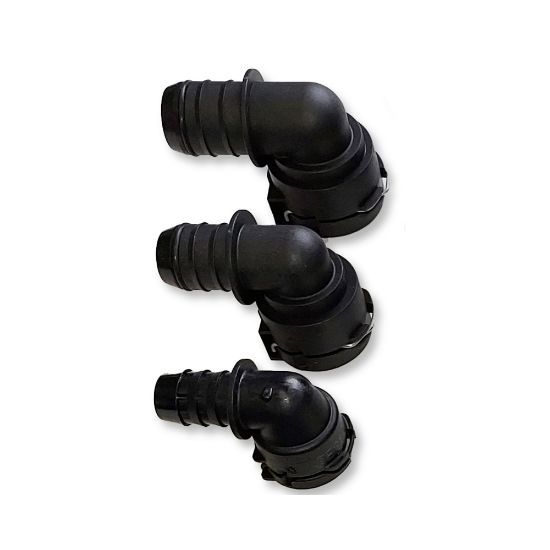

FVDA202290 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	3 in stock

SKU FVDA202290

$15.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	1.69"
Product Style	FVDA	Shape	Elbow 90°
Connection 1 Hose Inside Diameter	0.787" (I.D.)	Maximum Operating Temperature	212
Seal Material	EPDM (O-Ring)	Product Type	Hose Fitting
Connection Size	n/a	Shape	Elbow 90°
Division	Parflex Division	Industry	Transportation
Fitting Type	Barb / Beaded Barb / Mini Barb	For Fluid Type	Coolants (Water Based)
Size	-22	Division	Parflex Division
Connection Type	Push-to-Connect	Materials of Construction	High Performance Glass Filled Polyamide
Product Series	ECH	Configuration	Hose to VDA
Vacuum Pressure Rating	n/a	Maximum Operating Pressure	125
Length	1.69	Connection 1 Size	0.787 inch Hose I.D.
Notes	Socket Size: 0.787" / 20 mm	Minimum Operating Temperature	-40
Application	Fluid Transfer	Brand	Parker
Product Style	VDA
