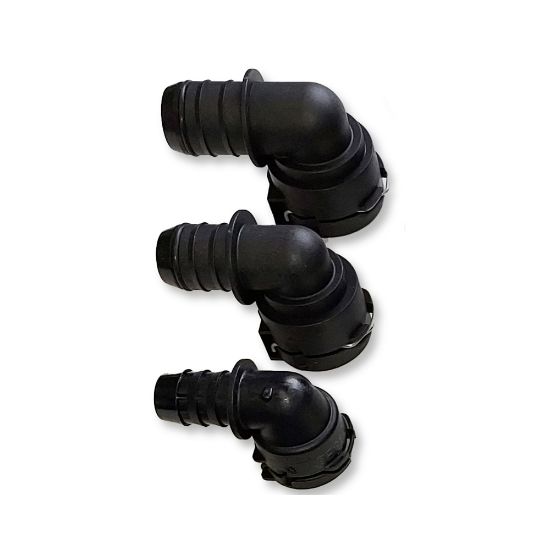

FVDA121490 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU FVDA121490

$9.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Hose Inside Diameter	0.472" (I.D.)
Length (inch)	1.22"	Shape	Elbow 90°
Product Style	FVDA	Seal Material	EPDM (O-Ring)
Connection Size	n/a	Connection 1 Size	0.472 inch Hose I.D.
Product Type	Hose Fitting	Length	1.22
Industry	Transportation	Fitting Type	Barb / Beaded Barb / Mini Barb
Connection Type	Push-to-Connect	Division	Parflex Division
For Fluid Type	Coolants (Water Based)	Maximum Operating Temperature	212
Size	-14	Maximum Operating Pressure	125
Configuration	Hose to VDA	Materials of Construction	High Performance Glass Filled Polyamide
Division	Parflex Division	Vacuum Pressure Rating	n/a
Shape	Elbow 90°	Notes	Socket Size: 0.472" / 12 mm
Minimum Operating Temperature	-40	Product Style	VDA
Brand	Parker	Product Series	ECH
Application	Fluid Transfer
