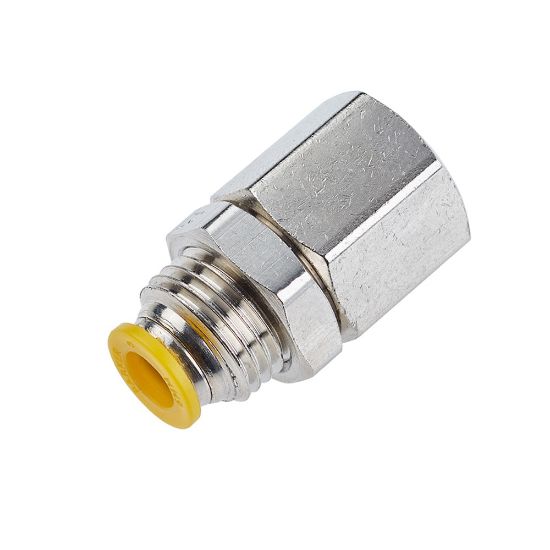

66PLPBH-4M-4G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 66PLPBH-4M-4G

$13.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Product Style	Bulkhead
Connection 2 Type	Female BSPP	For Fluid Type	Air
Maximum Operating Temperature	93.3 °C	Gripping Ring Material	Stainless Steel
Seal Material	Nitrile	Division	Fluid System Connectors Division
Tube Material	Polyethylene	Technology	Pneumatics
Minimum Operating Temperature	-17.7 °C	Hex Size	11/16 inch
Brand	Parker	Materials of Construction	PVDF (Button)
Application	Air Lines	Specifications Met	UL 94 V-0
Region of Origin	United States	Maximum Operating Pressure	300 psi
Body Material	Brass, Nickel-plated	Vacuum Pressure Rating	28 Inch-Hg
Division	Fluid System Connectors Division	Industry	Semiconductor
