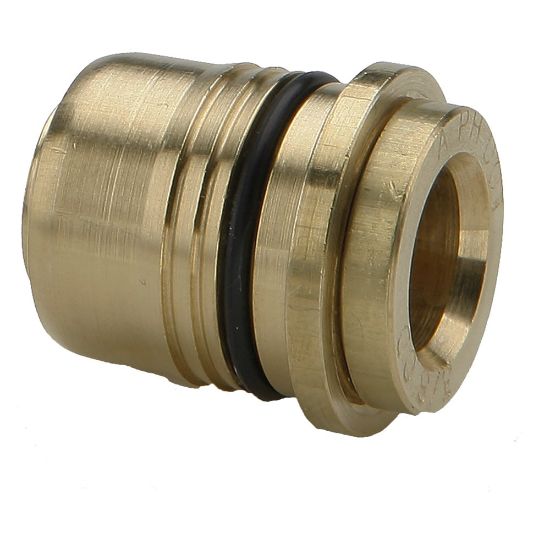

PTCCE-10 - Push-to-Connect Cartridges, Transportation

Parker's SAE encapsulated cartridge allows the user to eliminate the space and labor required to install and assemble a conventional pipe thread fitting.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	Backordered

SKU PTCCE-10

$79.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	5/8" (O.D.)
Cavity Size	0.925"	Maximum Operating Pressure	250 psi
Connection 1 Type	Push-to-Connect	Body Material	Brass
Minimum Operating Temperature	-40 °C	Product Style	PMT Cartridge
Specifications Met	D.O.T. FMVSS 571.106	Tube Material	Brass
Division	Fluid System Connectors Division	Seal Material	Buna N (O-Ring)
Maximum Operating Temperature	200 °F
