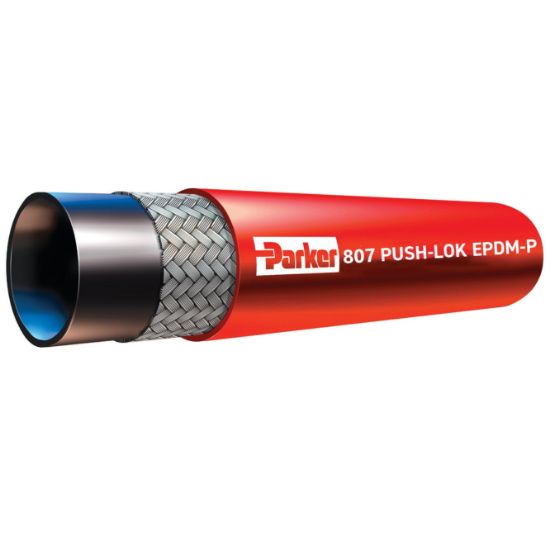

Parker 807-4-RED-RL Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 807-4-RED-RL

$3.67/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	.011 kg/m
Maximum Operating Pressure	1.03 MPa	Hose Inner Tube Material	Black EPDM peroxide cured
Division	Hose Products Division	Maximum Operating Temperature	100 °C
Compatible Fitting	82 series	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	1.0 inch	Cover Material	Red synthetic rubber smooth finish
Media	air, water (including PCW), coolant solutions	Hose Outside Diameter	0.50 inch
Hose Reinforcement Material	One fiber braid	Specifications Met	UL94 V-0 Flame resistance rating
Application	Media Transfer
