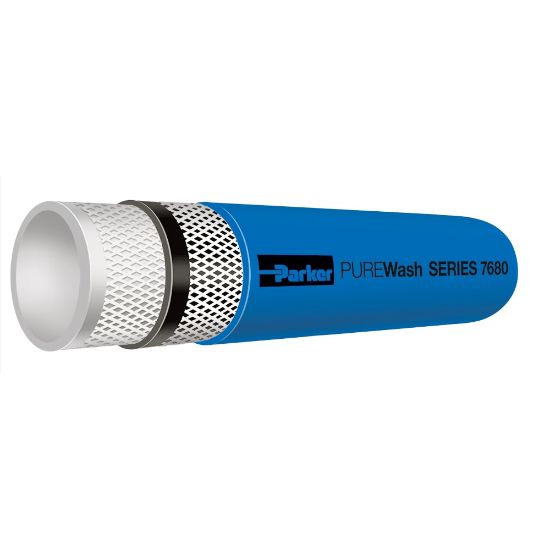

7680-12-BLU-BX - PUREWash Hose Series 7680

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 7680-12-BLU-BX

$5.73/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	0.75
Cover Color	Blue	Application	Equiment Sanitation, Preventative Maintenance
Hose O.D. (inch)	1.156	Hose I.D. (mm)	19.1
Hose O.D. (mm)	29.4	Standard Package Quantity	50 ft box
Maximum Working Temperature (C)	100	Maximum Working Temperature (F)	212
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Cover Color	Blue	Weight	0.37 lb/ft
Maximum Operating Pressure	20.7 bar	Inside Diameter	19.1 mm
Hose Inner Tube Material	Smooth	Division	Hose Products Division
Compatible Fitting	HY Series	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-40 °F	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Bend Radius	6 inch	Media	Food & Beverage (Food & Beverage Processing Plants)
Outside Diameter	1.156 inch	Specifications Met	n/a
Application	n/a	Hose Reinforcement Material	4 Plies

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
