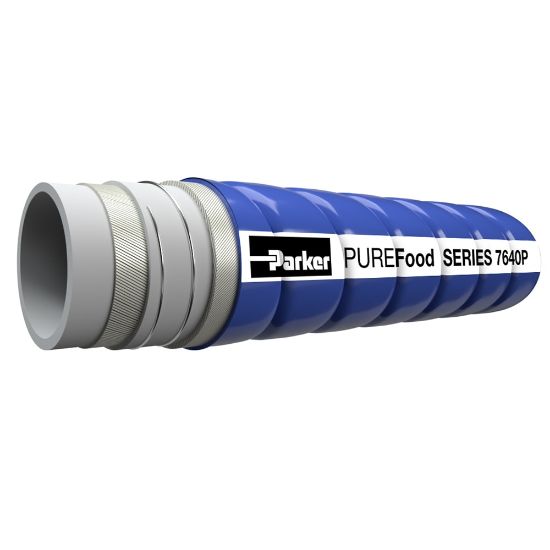

7640P-2000 - PUREFood Hose Series 7640P

PUREFood Series 7640P is a high quality, flexible delivery and suction hose. This series is designed to convey cooking oils and fat, dairy products, and oily sauces. The tube material consists of premium nitrile (NBR).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	149 in stock

SKU 7640P-2000

$53.22/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Application	Food Transfer	Hose O.D. (inch)	2.52
Meets Industry Specifications	FDA, BFR, DM, MHLW, CE, 3A, REACH	Hose Inner Tube Material	Phtalates Free
Division	Hose Products Division	Maximum Operating Temperature	176 °F
Minimum Operating Temperature	-25 °C	Minimum Bend Radius	3.94 inch
Cover Material	Low Friction Material	Media	Food & Beverage (Oily Sauces)
Outside Diameter	66 mm	Minimum Burst Pressure	450 psi
Specifications Met	BfR	Hose Reinforcement Material	Synthetic Plies
Application	Oily Sauces	Weight	1.27 lb/ft
Maximum Operating Pressure	10 bar	Inside Diameter	51 mm
Vacuum Pressure Rating	90 kPa
