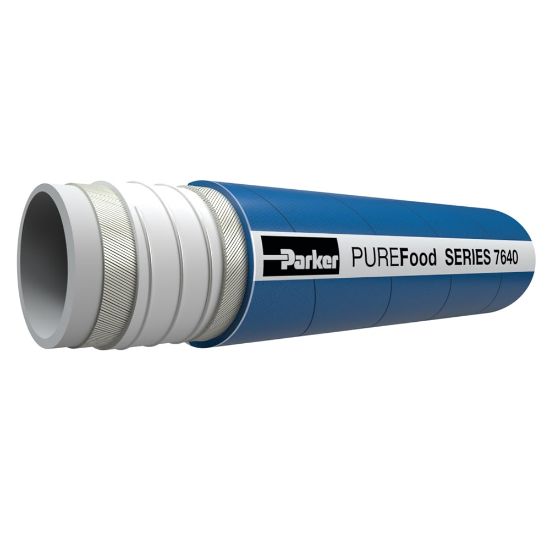

7640-1000 - PUREFood Hose Series 7640

PUREFood Series 7640 is a high quality, flexible delivery and suction hose. This series is designed to convey cooking oils and fat, dairy products, dry abrasives, and oily sauces. The tube material consists of premium nitrile (NBR).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	Backordered

SKU 7640-1000

$25.87/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Application	Food Transfer	Hose O.D. (inch)	1.46
Meets Industry Specifications	FDA, BFR, DM, MHLW, CE, 3A, REACH	Media	Food & Beverage (Dairy Products)
Maximum Operating Temperature	176 °F	Hose Inner Tube Material	White
Cover Structure	Smooth	Minimum Bend Radius	3.35 inch
Minimum Operating Temperature	-25 °C	Hose Reinforcement Material	Galvanized Wire Helix
Outside Diameter	37 mm	Weight	0.61 lb/ft
Inside Diameter	25.4 mm	Maximum Operating Pressure	150 psi
Application	Dairy Products	Minimum Burst Pressure	450 psi
Specifications Met	CE	Division	Hose Products Division
Vacuum Pressure Rating	90 kPa

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
