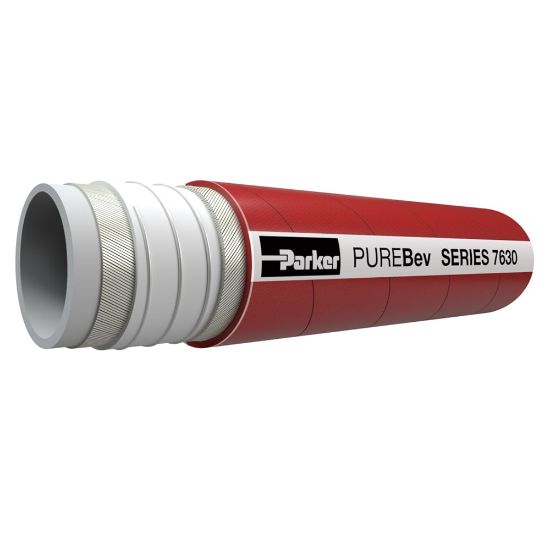

7630-3000 - PUREBev Hose Series 7630

PUREBev Series 7630 is a flexible delivery and suction hose designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 7630-3000

$46.77/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Application	Beverage Transfer
Hose O.D. (inch)	3.7	Vacuum Pressure Rating	26.5 Inch-Hg
Weight	2.63 lb/ft	Media	Food & Beverage (Alcohol/Spirits [concentration up to 96%])
Hose Inner Tube Material	White	Maximum Operating Temperature	248 °F
Division	Hose Products Division	Hose Reinforcement Material	Galvanized Wire Helix
Minimum Bend Radius	330 mm	Cover Structure	Smooth
Minimum Operating Temperature	-40 °C	Inside Diameter	76 mm
Outside Diameter	94.0 mm	Maximum Operating Pressure	250 psi
Application	Beverage (Wine)	Specifications Met	3A
Minimum Burst Pressure	750 psi
