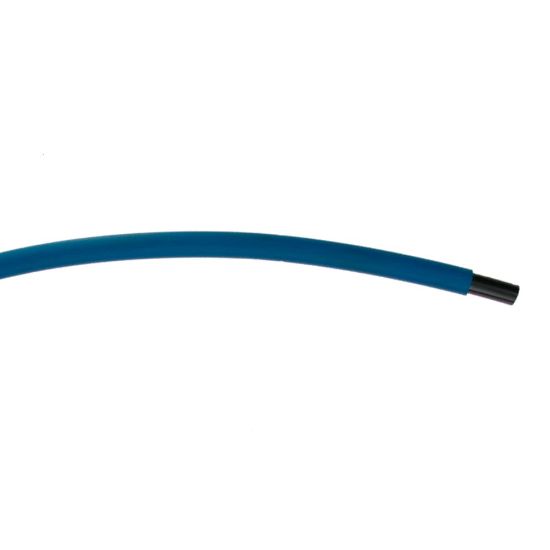

95FR-4-BLU-0250 - PU Tubing - Flame Resistant

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU 95FR-4-BLU-0250

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	-4
Color	Blue	Standard Pack Qty (ft)	250.0
Product Type	Inch	Tube Inside Diameter	3.0 mm
Cover Material	Proprietary Material	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	3/4 inch	Tube Outside Diameter	1/4 inch
Maximum Operating Temperature	165 °F	Compatible Fitting	68PLM
Tube Material	Polyurethane	Product Type	Fractional
Cover Color	Blue	Cover Thickness	0.045 inch
Division	Parflex Division	Length per Package	250 ft
Minimum Burst Pressure	720 psi	Application	Pneumatic Systems
Diameter	0.340 inch	Weight	0.062 kg/m
Maximum Operating Pressure	1.65 MPa
