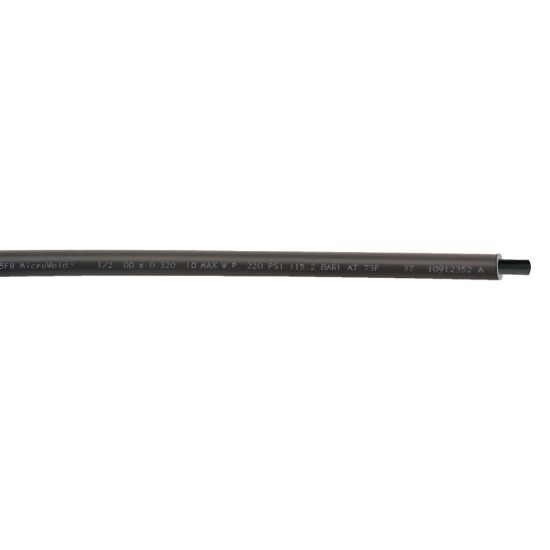

95FR-4-BLK-0250 - PU Tubing - Flame Resistant

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU 95FR-4-BLK-0250

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	-4
Product Type	Inch	Standard Pack Qty (ft)	250.0
Color	Black	Tube Outside Diameter	6.4 mm
Application	Robotics	Diameter	0.340 inch
Minimum Burst Pressure	720 psi	Product Type	Fractional
Tube Material	Polyurethane	Tube Inside Diameter	3.0 mm
Minimum Bend Radius	3/4 inch	Minimum Operating Temperature	-40 °F
Cover Material	Proprietary Material	Length per Package	250 ft
Division	Parflex Division	Cover Thickness	0.045 inch
Maximum Operating Temperature	75 °C	Compatible Fitting	68PLM
Weight	0.042 lb/ft	Maximum Operating Pressure	240 psi
Cover Color	Black
