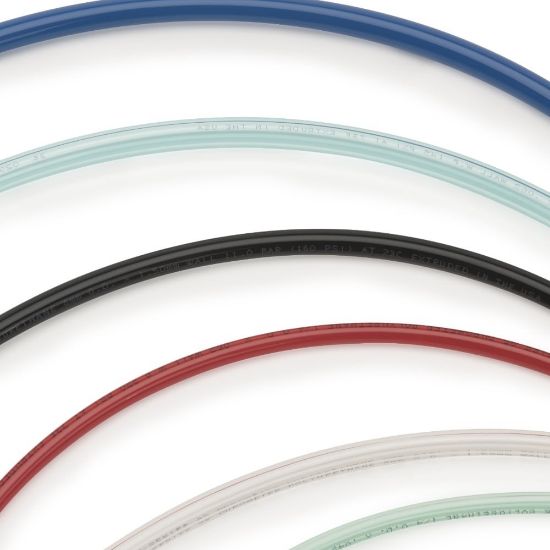

95U-4-045-1000 - PU Tubing

Flexible Polyurethane Tubing -95U/95UM Series offers the greatest flexibility and kink resistance along with exceptional abrasion resistance of any rubber or thermoplastic tubing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1453 in stock

SKU 95U-4-045-1000

$1.05/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Natural
Order Size	1/4	Standard Pack Qty (ft)	1000
Product Type	Inch	Tube Inside Diameter	0.160 inch
Tube Outside Diameter	1/4 inch	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	82 °C	Compatible Fitting	TrueSeal™
Tube Material	Polyurethane	Media	Water
Division	Parflex Division	Application	Machine Tools
Minimum Burst Pressure	35.1 bar	Maximum Operating Pressure	11.7 bar
Min. Operating Temperature	-40 °C -40 °F	Max. Operating Temperature	180 °F 82 °C
Min. Burst Pressure	35.1 Bar 510 psi	Inside Diameter	0.160 Inch 40.1 MM
Wall Thickness	0.045 Inch 1.1 MM	Outside Diameter	1/4 Inch 6.4 MM
Media	Air, Water	Material	Polyurethane
Max. Operating Pressure	170 psi 11.7 Bar	Parker Group	Fluid Connector
Parker Division	Tubing
