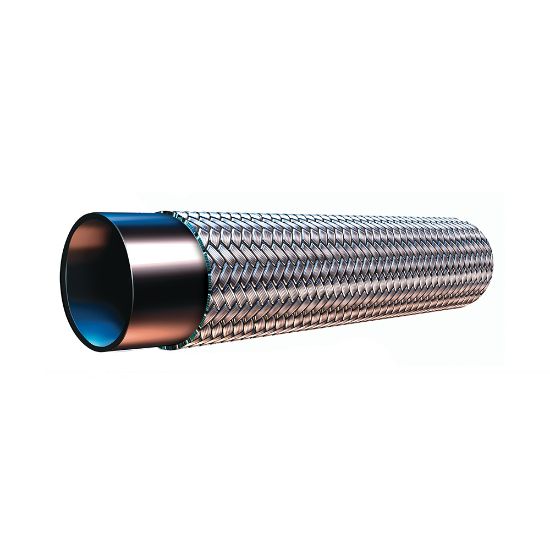

929B-4 - PTFE Hose - 929B

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1521 in stock

SKU 929B-4

$12.79/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Hose Style	Static Dissipative PTFE	Maximum Operating Temperature	232 °C
Compatible Fitting	91N Series	Division	Parflex Division
Size	-4	Product Type	PTFE Hose
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Application	High Temperature Applications
Specifications Met	SAE 100R1, Type 4B	Cover Material	n/a
Product Style	Static Dissipative	Minimum Bend Radius	2 inch
Hose Reinforcement Material	Braid of 304 Stainless Steel	Minimum Operating Temperature	-100 °F
Vacuum Pressure Rating	711.2 mm-Hg	Weight	0.08 lb/ft
Outside Diameter	8.6 mm	Inside Diameter	5 mm
Maximum Operating Pressure	20.7 MPa
