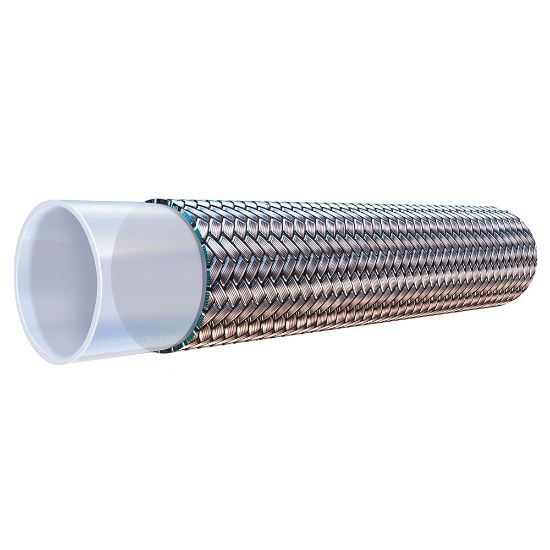

929-4 - PTFE Hose - 929B

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	85 in stock

SKU 929-4

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Hose Style	Natural PTFE	Cover Color	Natural
Vacuum Pressure Rating	28 Inch-Hg	Weight	0.12 kg/m
Maximum Operating Pressure	3000 psi	Outside Diameter	8.6 mm
Inside Diameter	5 mm	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Compatible Fitting	91N Series	Maximum Operating Temperature	232 °C
Size	-4	Division	Parflex Division
Cover Material	n/a	Media	Petroleum Hydraulic Fluids
Product Type	PTFE Hose	Design Factor	4:1
Application	Chemical Transfer	Specifications Met	SAE 100R1, Type 4A
Minimum Operating Temperature	-100 °F	Hose Reinforcement Material	Braid of 304 Stainless Steel
Minimum Bend Radius	51 mm
