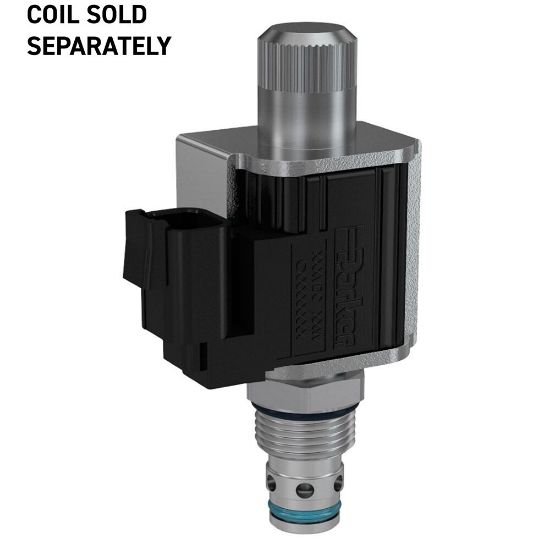

FAP101NV - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP101NV

$477.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Open	Maximum Flow Rate	14.5 GAL/MIN, 55 L/MIN
Power Consumption	18 W	Cavity Size	C10-2
Minimum Operating Temperature	-15 °F	Override Functionality	N/A
Seal Material	Fluorocarbon	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Maximum Inlet Pressure Rating	3000 psi	Hysteresis	< 15%
Minimum Pressure Differential	300 psi	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Variation of Closing Point	60-65% of Input Signal
Flow Direction	Side to Nose (2 - 1)	Function	Proportional Flow Control/Regulator
Division	Hydraulic Systems Division	Installation Torque	25 lb-ft
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	14.5 Gal/min
Frequency	100-400 Hz	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	5/8" Super Coil Low Watt (CAS)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Open	Operating Temperature	-26 to +204 °C
Variation of Opening Point	N/A	Flow Rate	14.5 Gal/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.23 kg
Coil Nut Tightening Torque	1.4 Nm	Maximum Operating Pressure	210 bar
Actuation Type	Electrical	Body Material	N/A
