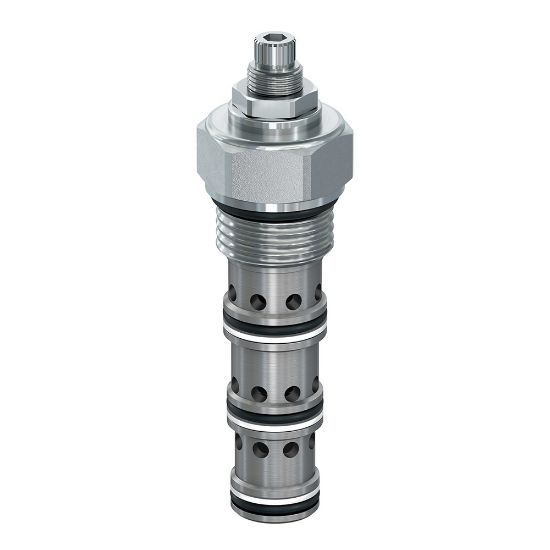

FCPH121SV - Priority Pressure Compensators

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 421 days
Partner Available:	Backordered

SKU FCPH121SV

$228.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Differential	160 PSI, 11 BAR
Maximum Priority Flow	20 GAL/MIN, 75 L/MIN	Seal Material	Fluorocarbon
Maximum Flow Rate	25 GAL/MIN, 95 L/MIN	Function	Priority Pressure Compensators
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	25 Gal/min	Maximum Operating Temperature	+204 °C
Maximum Inlet Pressure Rating	380 bar	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Body Material	N/A
Actuation Type	Pressure Compensation	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate Accuracy	N/A	Weight	0.62 lb
Maximum Operating Pressure	5500 psi	Division	Hydraulic Systems Division
Installation Torque	29 Nm	Adjustment Mechanism	Screw
Cavity Size	C12-4	Minimum Operating Temperature	-15 °F
Maximum Priority Flow	75 L/min	Pressure Differential	11 bar
Flow Rate	95 L/min	Operating Temperature	-15 to +400 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
