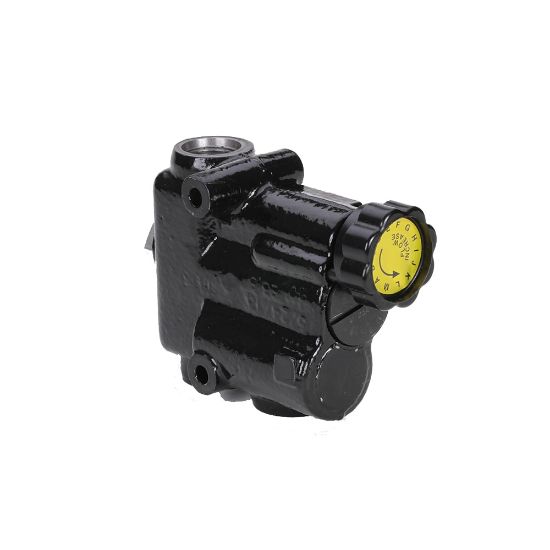

DC25A-12 - Priority Flow Control - DC25 Series

Parker’s DC25A Adjustable Flow Divider is designed for providing a 1-26 GPM controlled flow source. It is typically applied for applications where frequent adjustments to the controlled flow rate are required.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU DC25A-12

$568.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	SAE-12
Minimum Operating Pressure	70	Maximum Operating Pressure	3000
Body Material	High Strength Cast Iron	Weight	8 lb
Actuation Type	Manual	Configuration	Inline
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	+200 °F
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	30 Gal/min
Connection Type	SAE	Function	Flow Control
Connection Size	#12	Seal Material	Nitrile
Flow Rate	Adjustable Gal/min	Product Style	Priority Flow Control
Minimum Operating Temperature	-40 °F
