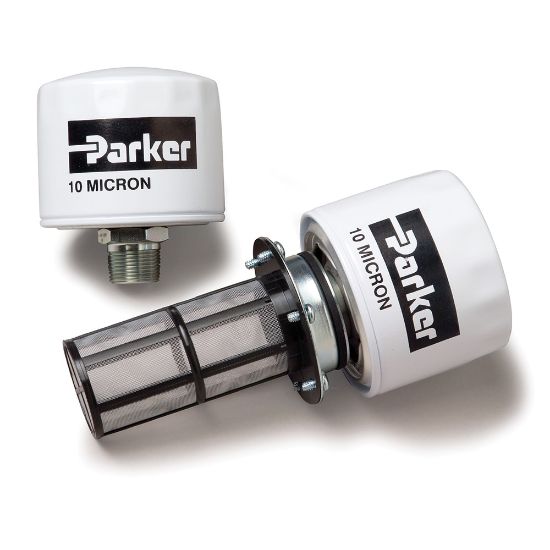

PV-05-12MP - Pressure/Vacuum Relief Valves, Bayonet Tank Mount Option - PV Series

Parker's pressure/vacuum relief valves are designed for use with pressurized reservoirs to prevent pump cavitation by maintaining positive tank pressure and filtering incoming air.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	9 in stock

SKU PV-05-12MP

$140.36/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	3/4 - 14
Thread Type	Male NPTF	Special Options	na
Cracking Pressure (psi)	5	Pressure Control Range	5 psi
Actuation Type	Mechanical	Maximum Operating Pressure	30 psi
Dimensional Weight	1.1472571942446044 lb	Vacuum Relief Pressure	0.3 psi
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Maximum Flow Rate	N/A
For Fluid Type	Hydraulic	Seal Material	Elastomeric
Body Material	Steel	Filter Type	Disposable, 10 micron
