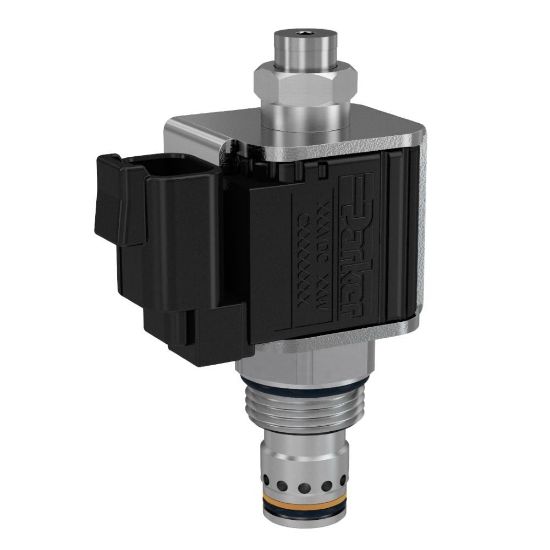

AP04G2YP21CV - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU AP04G2YP21CV

$222.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	25 GAL/MIN, 95 L/MIN	Configuration	Increasing Pressure/Increasing Current
Maximum Relief Pressure	3000 PSI, 210 BAR	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	25 Gal/min	Leak Rate	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	204 °C
Maximum Pressure Setting	n/a	Frequency	100 to 400 Hz
Seal Material	Fluorocarbon	Valve Material	Hardened Steel
Maximum Inlet Pressure Rating	5000 psi	Hysteresis	< 7 %
Installation Torque	25 lb-ft	Division	Hydraulic Systems Division
Body Material	n/a	Weight	0.3 lb
Coil Type	1/2" Super Coil High Watt (CCP)	Operation Type	Solenoid Operated
Pressure Control Range	n/a	Mounting Type	Screw-in Cartridge
Flow Rate	25 Gal/min	Operating Temperature	-26 to 204 °C
Coil Nut Tightening Torque	4.1 Nm	Configuration	Increasing Pressure/Increasing Current
Maximum Operating Pressure	210 bar	Actuation Type	Electrical
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	SAE Class 4
Function	Proportional Pressure Relief	Cracking Pressure	n/a
Maximum Relief Pressure	210 bar	Flow Direction	Nose to Side (1-2)
Cavity Size	C10-2	Minimum Operating Temperature	-26 °C
Power Consumption	19 W
