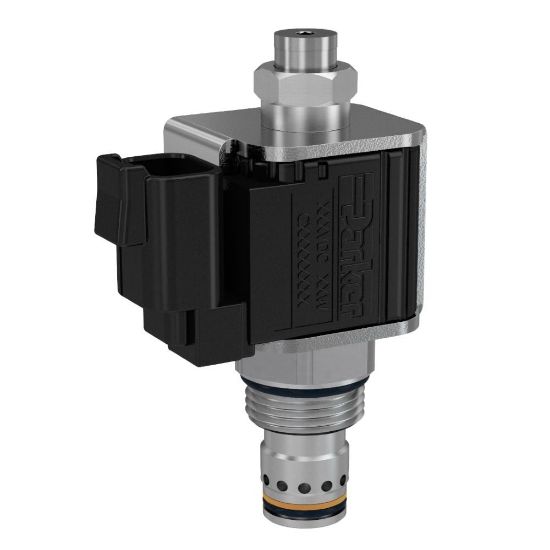

AP04G2YP21CN - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU AP04G2YP21CN

$204.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	25 GAL/MIN, 95 L/MIN	Configuration	Increasing Pressure/Increasing Current
Maximum Relief Pressure	3000 PSI, 210 BAR	Flow Rate	95 L/min
Actuation Type	Electrical	Operating Temperature	-30 to 250 °F
Configuration	Increasing Pressure/Increasing Current	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Coil Nut Tightening Torque	4.1 Nm	Body Material	n/a
Filter Efficiency Rating	SAE Class 4	Installation Torque	34 Nm
Weight	0.3 lb	Maximum Operating Pressure	210 bar
Power Consumption	19 W	Maximum Relief Pressure	210 bar
Cracking Pressure	n/a	Cavity Size	C10-2
Minimum Operating Temperature	-30 °F	Mounting Type	Screw-in Cartridge
Pressure Control Range	n/a	Maximum Inlet Pressure Rating	5000 psi
Leak Rate	5	Maximum Operating Temperature	121 °C
Hysteresis	< 7 %	Seal Material	Nitrile
Valve Material	Hardened Steel	Maximum Pressure Setting	n/a
Function	Proportional Pressure Relief	Flow Direction	Nose to Side (1-2)
Division	Hydraulic Systems Division	Operation Type	Solenoid Operated
For Fluid Type	Mineral-based Hydraulic Fluids	Frequency	100 to 400 Hz
Division	Hydraulic Cartridge Systems Division	Coil Type	1/2" Super Coil High Watt (CCP)
Maximum Flow Rate	95 L/min
