Pressure Gauges - Reservoir Equipment
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Pressure gauges are used in several applications to give an instant visual indication of system pressure level.

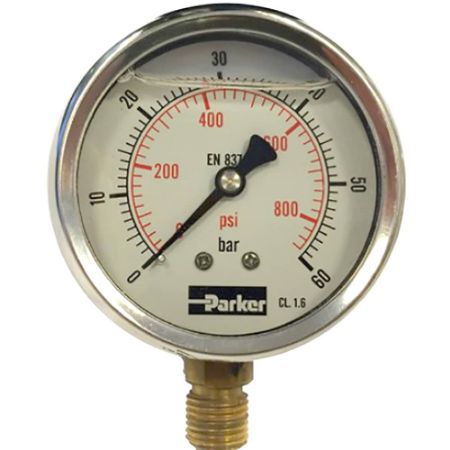

Parker pressure gauges have a stainless steel casing and acrylic glass window. They are filled with 99,7% glycerine.
Features
• Temperature range up to 60°C.
• Accuracy down to 1.0% of full scale.
• IP Class 65.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...Parker pressure gauges have a stainless steel casing and acrylic glass window. They are filled with 99,7% glycerine.
Features
• Temperature range up to 60°C.
• Accuracy down to 1.0% of full scale.
• IP Class 65.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection Type | Diameter | Options | Port Size | Operating Pressure | Division | Ingress Protection Rating | Brand | Materials of Construction | Product Type | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PGB0631010 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-10 bar (0-145psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB0631025 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-25 bar (0-232 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB0631060 | Backordered | 1 Limited Stock | $87.87/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-60 bar (0-870 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB0631100 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-100 bar (0-1450 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB0631160 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-160 bar (0-2320 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB0631250 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-250 bar (0-3625 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB0631600 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-600 bar (0-8702 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGB1001100 | Backordered | Backordered | $198.41/each | EA | Bottom | 100 mm (4 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/2 | 0-100 bar (0-1450 psi) | Hydraulic & Industrial Process Filtration Division EMEA | ||||||
| PGC0631016 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-16 bar (0-87 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631025 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-25 bar (0-232 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631060 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-60 bar (0-870 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631100 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-100 bar (0-1450 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631160 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-160 bar (0-2320 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631250 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-250 bar (0-3625 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631400 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-400 bar (0-5801 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGC0631600 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-600 bar (0-8702 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGF0631040 | Backordered | Backordered | $87.98/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-40 bar (0-580 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGF0631100 | Backordered | Backordered | $87.55/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-100 bar (0-1450 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGF0631160 | Backordered | Backordered | $87.98/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-160 bar (0-2320 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA | |
| PGF0631250 | Backordered | Backordered | $87.98/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-250 bar (0-3625 psi) | Hydraulic & Industrial Process Filtration Division EMEA | IP 65 | Parker | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | Pressure Gauge | Hydraulic & Industrial Process Filtration Division EMEA |
