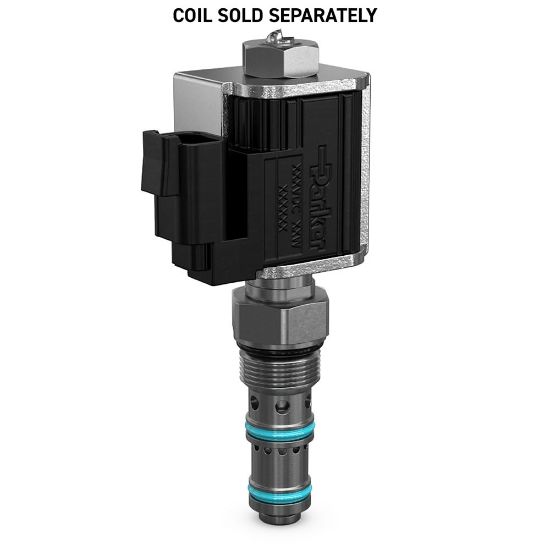

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FAPC101C - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC101C

$714.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Seal Material	D-Ring
Maximum Inlet Pressure Rating	3000 psi	Minimum Pressure Differential	500 psi
Hysteresis	< 10%	Seal Material	D-Ring
Valve Material	All parts steel. All operating parts hardened steel	Connection Size	N/A
Function	Proportional Pressure Compensated Flow Control/Regulator	Flow Direction	Top to Side (3 - 2)
Operation Type	Solenoid operated	Division	Hydraulic Systems Division
Maximum Operating Temperature	+200 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Frequency	100-400 Hz
Division	Hydraulic Cartridge Systems Division	Coil Type	5/8" Super Coil Low Watt (CAS)
Connection Type	N/A	Maximum Flow Rate	38 L/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-37 to +93 °C
Coil Nut Tightening Torque	4.1 Nm	Configuration	Normally Closed
Body Material	N/A	Weight	0.52 lb
Maximum Operating Pressure	210 bar	Installation Torque	34 Nm
Power Consumption	18 W	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Minimum Operating Temperature	-37 °C	Cavity Size	3X
Flow Rate	38 L/min
