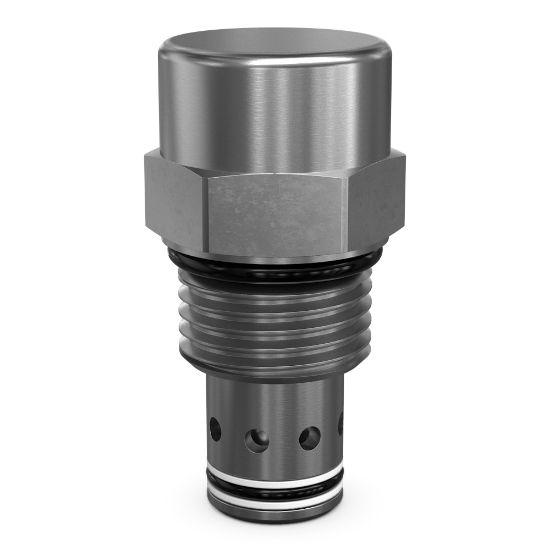

FR101F400 - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FR101F400

$101.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Fixed	Flow Rate Display Range	N/A
Standard Flow Rate Setting	4 GAL/MIN, 15 L/MIN	Configuration	Partial Reverse Flow
Maximum Flow Rate	6 GAL/MIN, 22.5 L/MIN	Function	Flow Control
Connection Size	N/A	Adjustment Mechanism	Fixed
Cavity Size	C10-2	Division	Hydraulic Cartridge Systems Division
Connection Type	N/A	Maximum Flow Rate	22.5 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Standard Flow Rate Setting	15 L/min
Seal Material	Nitrile	Maximum Inlet Pressure Rating	245 bar
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	10%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.5 lb	Maximum Operating Pressure	3500 psi
Body Material	N/A	Actuation Type	Pressure Compensated
Operation Type	Automatic	Installation Torque	22 (Aluminum), 65 (Steel) Nm
Division	Hydraulic Systems Division	Flow Rate Display Range	N/A Gal/min
Minimum Operating Temperature	-30 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Partial Reverse Flow	Operating Temperature	-35 to +121 °C
Flow Rate	6 Gal/min
