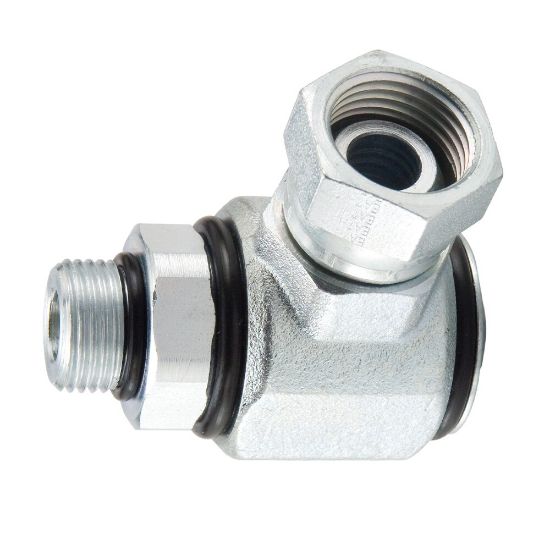

S2507-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Name: S2507-12-12 - Pressure Balanced, Hydraulic Swivels - S Series
SKU: S2507-12-12
Availability: LimitedAvailability

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:

1 Limited Stock

Springfield, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU S2507-12-12

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Male SAE O-ring Straight Thread
Seal Material	Nitrile	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Housing Connection Style	Female NPSM Pipe Swivel	Housing Connection Thread Size (inch)	3/4 - 14 NPSM
Plating	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Configuration	90 degree	Maximum Operating Pressure	3000 psi
Body Material	Steel	Maximum Operating Speed	10 RPM
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
