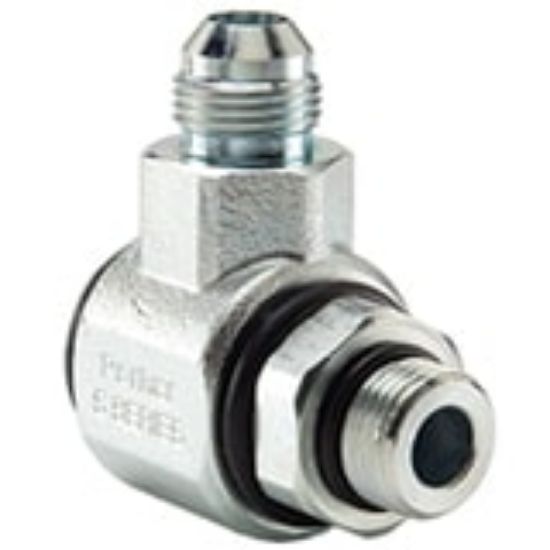

S2503-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	89 in stock

SKU S2503-12-12

$221.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Style	Male JIC 37 degree
Shaft Connection Style	Male SAE O-ring Straight Thread	Seal Material	Nitrile
Shaft Connection Thread Size (inch)	1 1/16 - 12 UN	Plating	Zinc with clear trivalent chromate
Housing Connection Thread Size (inch)	1 1/16 - 12 UN	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.22945143884892086 lb	Configuration	90 degree
Maximum Operating Pressure	3000 psi	Body Material	Steel
Maximum Operating Speed	10 RPM	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F
