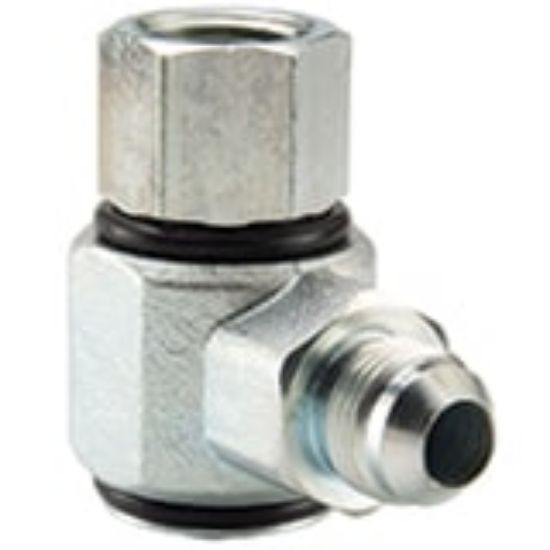

S2203-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2 Limited Stock

SKU S2203-12-12

$243.30/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Thread Size (inch)	1 1/16 - 12 UN
Housing Connection Style	Male JIC 37 degree	Shaft Connection Thread Size (inch)	3/4 - 14 NPTF
Seal Material	Nitrile	Shaft Connection Style	Female NPTF
Plating	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Configuration	90 degree	Maximum Operating Pressure	3000 psi
Body Material	Steel	Maximum Operating Speed	10 RPM
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
