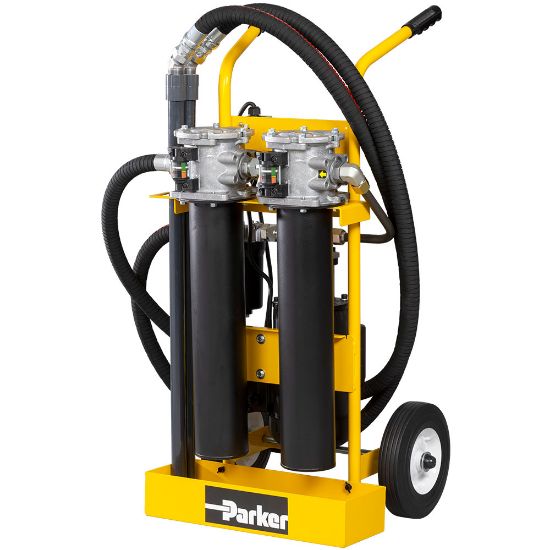

10PFCC2XXBVPI1 - Portable Fluid Conditioning Cart

Parker Portable Fluid Conditioning Carts are the most economical way to protect your system from contamination. The Intelli-Cart™ includes the icountPD which provides an excellent method for trending contamination levels and filtering.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 39 days
Partner Available:	Backordered

SKU 10PFCC2XXBVPI1

$3,470.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Filter Element	see catalog for options
Outlet Filter Element	see catalog for options	Interface Option	None
Maximum Flow Rate	10 gpm (38 lpm)	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	150.0 °F	Seal Material	Nitrile
Bypass Option Included	35 PSID (2.4 bar)<br/>(on both elements)	Electrical Requirements	110/220 volts, 60 Hz Single phase, 10/5.5 amps
Compatible Element	see catalog for options	Indicator Type	Visual indicator, 3-band (mounted on both stages)
Maximum Kinematic Viscosity	1000.0 SUS	Maximum Pressure Rating	150 psi
Weight	145 lbs (65.8 kg)
