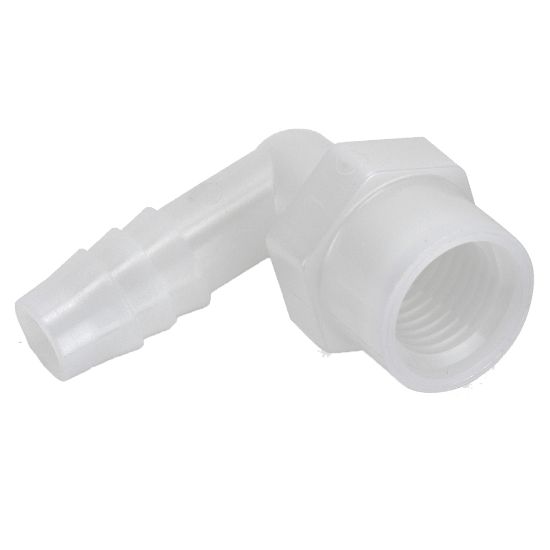

370HB-4-2N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 25 days
Partner Available:	Backordered

SKU 370HB-4-2N

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Shape	Elbow 90°	Connection 1 Size	1/4"
Connection 2 Size	1/8"	Connection 2 Type	Female Pipe
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Configuration	Barb to Female Pipe	Connection 2 Thread Size	1/8"
Connection 2 Hose I.D. (inch)	n/a	Body Material	Nylon,White
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Connection 2 Type	Female NPT
Color	White	Connection 3 Type	N/A
Connection 1 Size	1/4	Specifications Met	NSF 51
Minimum Operating Temperature	-40 °F	Brand	Parker
Compatible Tube	Vinyl	Maximum Operating Temperature	93 °C
Connection 2 Size	1/8	Media	Water
Connection 3 Size	N/A	Technology	Fluid & Gas Handling
Shape	90° Elbow	Division	Fluid System Connectors Division
For Fluid Type	Other Compatible Fluids	Division	Fluid System Connectors Division
Application	Beverage Dispensing	Configuration	Tube to Pipe
Connection 1 Type	Barbed	Body Material	Nylon
Vacuum Pressure Rating	-29	Maximum Operating Pressure	125 psi
